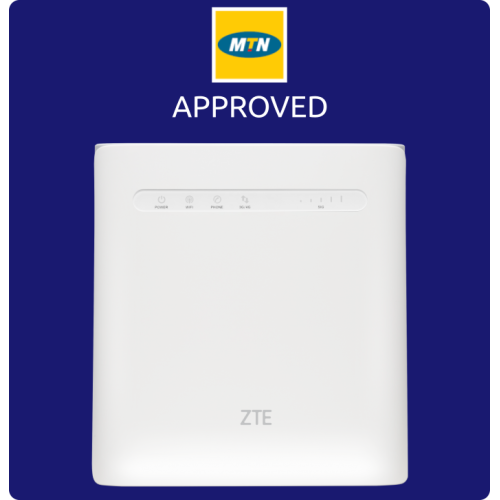

- ZTE MF286C
- Insert SIM card – configurations needed, http://192.168.0.1 in browser
- Username and password on the sticker underneath the router.
- Settings --> Dial-up --> Profile Management --> APN - ws.is.fwa
- MIMO supported – simultaneous data streams increase WiFi throughput and network efficiency.
*Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage, and quantity of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
| Hardware Features | |
| Button | Power On/Off Button |
| Dimensions ( W x D x H ) | 180 × 170 × 30 mm |
| Display | LED Light Indicators (Power, Phone, WiFi & Network) |
| Interface | 3 x LAN port 1x WAN port 2 x RJ45 |
| Wireless Features | |
| Frequency | 2.4 GHz and 5 GHz |
| Network Type | 2G – B4 3G – B1/8 4G – FDD B1/3/5/7/8/28, TDD B38/40/ |
| Signal Rate | DL 300 Mbps/UL 50Mbps |
| Transmit Power | < 20 dBm (2.4 GHz), < 23 dBm (5 GHz) |
| WAN Fail-over | Yes |
| Wireless Functions | Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics |
| Wireless Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions |
| Wireless Standards | 802.11 b/g/n/ac 2.4 & 5 ghz |
| Software Features | |
| Access Control | Parental Control, Local Management Control |
| DHCP | Server, DHCP Client List, Address Reservation |
| Guest Network | 2.4 GHz Guest Network x 1, 5 GHz Guest Network x 1 |
| Management | Local Management, Remote Management |
| Port Forwarding | ALG, Virtual Server, Port Triggering, UPnP, DMZ |
| Protocols | IPv4 |
| Quality of Service | Bandwidth Control |
| Others | |
| Package Contents | 4G+ Cat6 Router MF286C Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
| Operating Systems | Win10, Win8, Win7, Windows XP, Vista, Linux, Mac OS |
